Kasane 1.3

$5,799.00
Please note that price can vary per country
Size Guide
Size
Color

This product is unavailable

The Kasane is a modern high performance road bike that offers more speed, more comfort, more control, more versatility, and more fun than ever before. Because road riding has always been about riding all the roads, embracing the journey and the adventure, the Kasane is naturally ready no matter where or how you ride.

Learn More
Technical Specifications

  • Sizes

    S (51cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)

    Color(s)

    Carbon / Smoked Silver

    Frame

    Kasane All Road C15 carbon

    Fork

    Kasane All Road C15 carbon

    Crankset

    Shimano Ultegra 8100 12spd 52/36T

    Bottom Bracket

    FSA T47(85.5)

    Front Derailleur

    Shimano Ultegra Di2 8150 2x12

    Rear Derailleur

    Shimano Ultegra Di2 8150 12spd

    Shifters

    Shimano Ultegra Di2 8150 2x12

    Cassette

    Shimano Ultegra 8100 12spd 11-34

    Chain

    Shimanino Ultegra 12spd

  • Wheelset

    Vision Tech TC40, carbon, tubeless ready

    Tires

    Vittoria Corsa Control G2.0, 700 x 30c

    Tubes

    700 x 30 presta

    Brakeset

    Shimano Ultegra, 160mm rotors

    Brake Levers

    Shimano Ultegra Di2 12spd

    Headset

    FSA ACR 1.5"

    Handlebar

    Oval Concepts 990 Aero carbon, 31.8mm clamp, 125mm drop / 75mm reach

    Stem

    FSA NS ACR

    Tape

    Selle Italia SG Tape

    Saddle

    Selle Italia Model X

    Seatpost

    Fuji D-shape Carbon, 27.2 compatible

    Weight

    8.1 kg

*Specifications are subject to change without notice

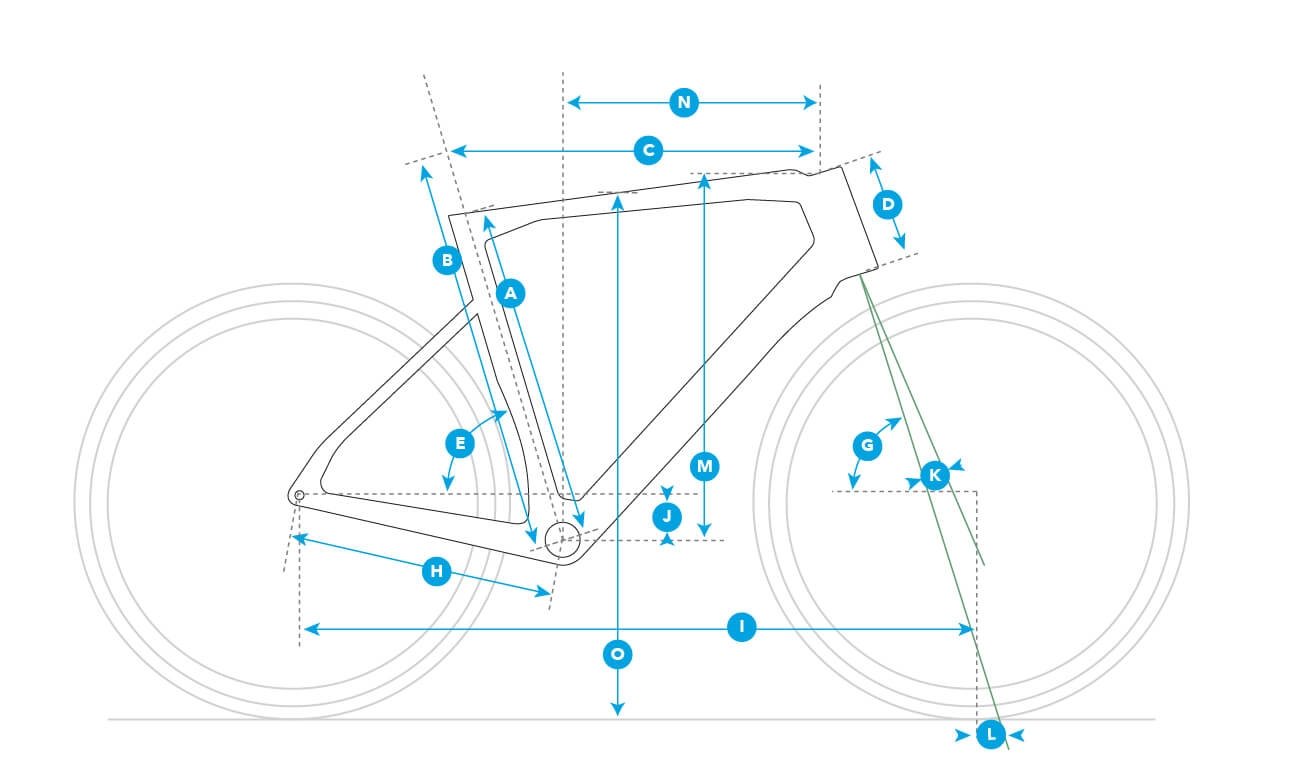

Geometry
Size XS S M L XL XXL
A Seat Tube Center To Top 445 485 515 535 555 575
B Seat Tube Effective 425 465 495 515 535 555
C Top Tube Effective 500 524 538 555 583 600
D Head Tube Length 96 116 136 165 186 214
E Seat Tube Angle 75° 74° 74° 74° 73° 73°
G Headtube Angle 70.5 71.5 72.5 72.5 72.5 72.5
H Chainstay Length 415 415 415 415 415 415
I Wheelbase 978 979 990 1020 1022 1039
J Bottom Bracket Drop 76 74 72 72 72 70
K Fork Offset 52 52 46 46 46 46
L Trail @ 30mm tires 66 60 60 60 60 60
M Stack 500 520 540 570 590 615
N Reach 365 372.5 380 390 400 410
O Standover 751 783 809 831 849 873
Stem 80 90 90 100 100 120
Handlebar Width 380 400 400 420 440 440
Crank 165 170 170 172.5 172.5 175
Wheel Size 700 700 700 700 700 700
Seat Post Diameter 27.2 27.2 27.2 27.2 27.2 27.2
